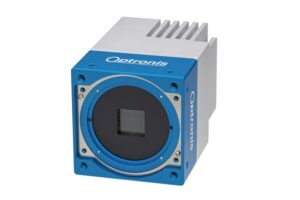

CycloneFiber-5
3D View
Description
The CycloneFiber-5 integrates the LUX51 sensor and provides a 2 MegaPixel resolution at 700 frames per second. Frame rate to be further increased by reducting resolution. The sensor’s global shutter function makes the camera ideal for simultaneous capture of all events distributed across the image area.
The image data is transmitted through the fiber optic interface CoaXPress-over-Fiber (CoF) based on industrial proven components. The protocol is based on the standardized CoaXPress 2.0 interface. The advantages of this interface are thus also available to the CycloneFiber-5 camera. In addition, very long transmission distances can be bridged.
More product information
Performance
| Resolution (H x V) | Frames / second |
|---|---|
2,560 x 1,920 |
693 fps |
1,920 x 1,080 |
1,227 fps |
1,280 x 960 |
1,380 fps |
512 x 384 |
3,418 fps |
256 x 8 |
95,057 fps |
Model options
| Article number | Description / second |
|---|---|
Cyclone-5-700-M |
monochrome camera |
Cyclone-5-700-C |
color camera |
Specifications
| Component / feature | Value |
|---|---|
Sensor type |
LUX51, global shutter |
Resolution |
2,560 pixel x 1,920 pixel |
Frame Rate (full resolution) |
20 .. 693 fps |
Exposure time |
4 µs .. 1 / Frame rate |
Active Area |
12.8 mm x 9.6 mm |
Diagonal |
16.0 mm |
Pixel distance |
5.0 µm x 5.0 µm |
A/D conversion |
8/10 bit |
Sensitivity |
6 V/lux·s @ 550 nm |
