CyclonePlus-9
3D View
Standards

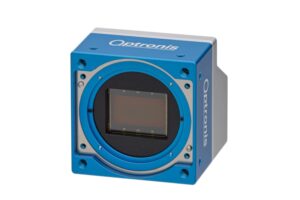

The CyclonePlus-9 is a high-resolution camera with low-noise pixels. It is part of Optronis’ CyclonePlus series for demanding machine vision applications including laser-triangulation.
These cameras stream image data at up to 50 Gb/s to a CoaXPress frame grabber for real-time processing.
Net List Price CyclonePlus-9-M
4.500,00 €
More product information
Performance
| Resolution (H x V) | Frames / second |
|---|---|
4,096 x 2,304 |
509 fps |
4,096 x 128 |
8,936 fps |
4,096 x 4 |
122,399 fps |
Model options
| Article number | Description / second |
|---|---|
CyclonePlus-9-M |
monochrome camera |
CyclonePlus-9-C |
color camera |
Specifications
| Component / feature | Value |
|---|---|
Sensor Type |
LUX9506, Global Shutter |
Resolution |
4,096 pixel x 2,304 pixel |
Frame rate (full resolution) |
20 .. 509 fps |
Active area |
26.62 mm x 14.98 mm |
Diagonal |
30.55 mm |
Pixel distance |
6.5 µm x 6.5 µm |
A/D Conversion |
8 bit |
Quantum efficiency (sensor) |
38 % @ 550 nm |
