CyclonePlus-21
3D View
Description

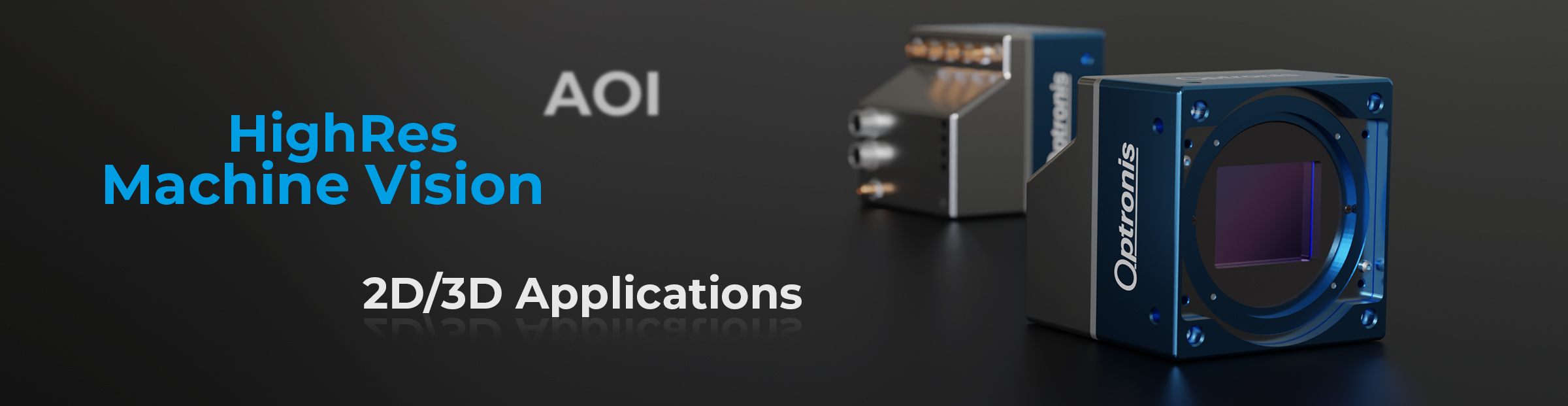

The CyclonePlus-21 is a fast and high-resolution camera with real-time image transmission. At full 21 Mpixel resolution, the camera captures up to 230 fps. The GSPRINT4521 sensor has large pixels with high sensitivity, resulting in the best image quality. The square pixel format, low noise and global shutter operation make the camera ideal for R&D and machine vision applications. For 3D laser triangulation, the camera can be used at very high frame rates, which are achieved by reducing the vertical resolution. The CyclonePlus-21 transmits data via the CoaXPress 2.1 interface over 4 channels each at 12.5 Gbit/sec.
Net List Price CyclonePlus-21-M
4.700,00 €
More product information
Performance
| Resolution (H x V) | Frames / second |
|---|---|
5,120 x 4,096 |
230 fps |
3,840 x 2,176 |
442 fps |
1,920 x 1,088 |
871 fps |
5,120 x 2,048 |
456 fps |
4,928 x 32 |
14,436 fps |
Model options
| Article number | Description / second |
|---|---|
CyclonePlus-21-M |
Monochrom Camera |
CyclonePlus-21-C |
Color Camera |
Specifications
| Component / feature | Value |
|---|---|
Sensor |
GSPRINT4521 high-speed |
Resolution |
5,120 x 4,096 Pixel |
Frame rate (full resolution) |
1 bis 230 fps |
Exposure Time |
4 µs up to 1/ frame rate |
Active Area |
23.04 mm x 18.43 mm |
Image Diagonal |
29.5 mm |
Pixel to pixel distance |
4.5 µm x 4.5 µm |
A/D Conversion |
8/10 Bit |
