CyclonePlus Series

CyclonePlus Series

CyclonePlus series cameras are high-speed, high-resolution cameras for machine vision applications. The cameras use the fast CoaXPress 2.1 interface. Compared to Cyclone cameras they integrate improve image processing and housing allowing shorter focal distance High performance image sensors are integrated without compromising speed. Real time image transfer at high-speed and high spatial resolution becomes possible with CyclonePlus series cameras.

CXP-12 interface for 4x 12.5 Gb/s
small housing
various applications

Frame rate calculator provides information about frame rate as function of resolution and interface configuration.

OUR MODELS

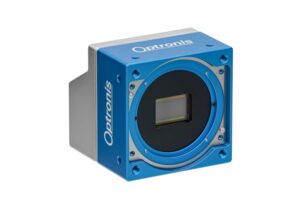

CyclonePlus-14-M
CyclonePlus-14-C

4.608 x 3.072 pixel

310 fps

High-resolution machine vision
Automated optical inspection (AOI)
UV imaging

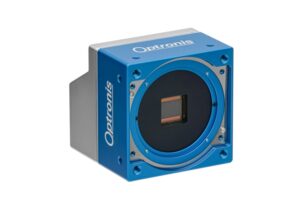

CyclonePlus-9-M
CyclonePlus-9-C

4,096 x 2,307 pixel

509 fps

Metrology and high-speed image processing
Laser line profilometry
Automated optical inspection (AOI)

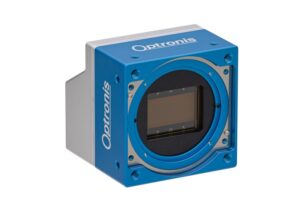

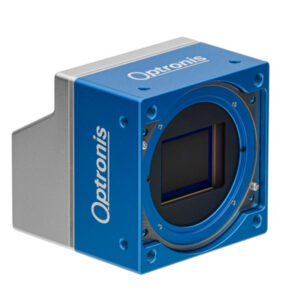

CyclonePlus-21-M
CyclonePlus-21-C

5,120 x 4,096

230 frames/sec.

2D und 3D Measurements
high resolution inspection
CXP12, CXP6

CyclonePlus-25-M
CyclonePlus-25-C

5,120 x 5,120

150 frames/sec

2D and 3D applications
high resolution inspection
CXP12, CXP6

CyclonePlus-65

9,344 x 7,000

71 fps

fast inspection
2D metrology
Global Shutter
CXP12, CXP6

CyclonePlus-1HS-M
CyclonePlus-1HS-C

1,280 x 860

3,518 fps

fast inspection
2D metrology
Global Shutter
CXP12

CyclonePlus-2-M
CyclonePlus-2-C

1,920 x 1,080

2,166 fps

Metrology
3D scanning
Inline inspection
Global shutter
CXP-12, 4x HD-BNC

CyclonePlus-5-M
CyclonePlus-5-C

2,560 x 1,920

693 fps

2D/3D Metrology
CXP-12, 4x HD-BNC
